Performance
The Blue Diamond ET100A produces 100 liters of air per minute, guaranteeing your aerobic septic system will effectively manage waste. As oxygen pumps into your wastewater, it will break down waste into manageable bits and help the waste destroying bacteria in the tank thrive. The Blue Diamond ET100’s high flow rate will increase levels of oxygen in your wastewater and keep your drainage clear, reducing the amount of effluent that drains from your septic system. This air pump has no wearing parts, so you can be sure that the air pump is operating at peak efficiency without sacrificing performance. These specific pumps are not to be used on ponds over 5 foot in depth as the back pressure will ruin them, as it is not good for them. Blue Diamond aerators noise level is higher than other comparable linear diaphragm aerators.
Low Power Consumption
Blue Diamond air pumps are some of the most energy-efficient aerators on the market. The Blue Diamond ET100 uses green drive technology for power consumption as low as 80 watts. Know that you are helping the environment by eliminating harmful waste and saving energy with your aerobic septic system, even when it is running continuously.
Longevity

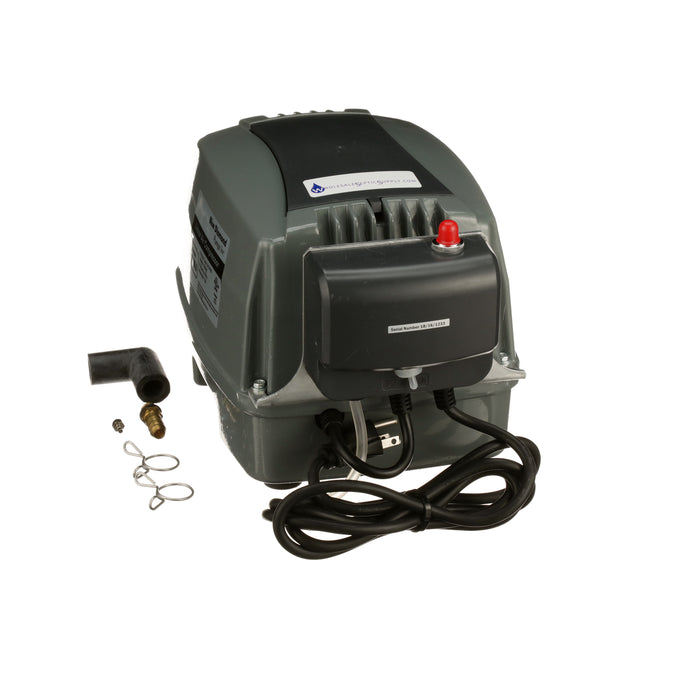

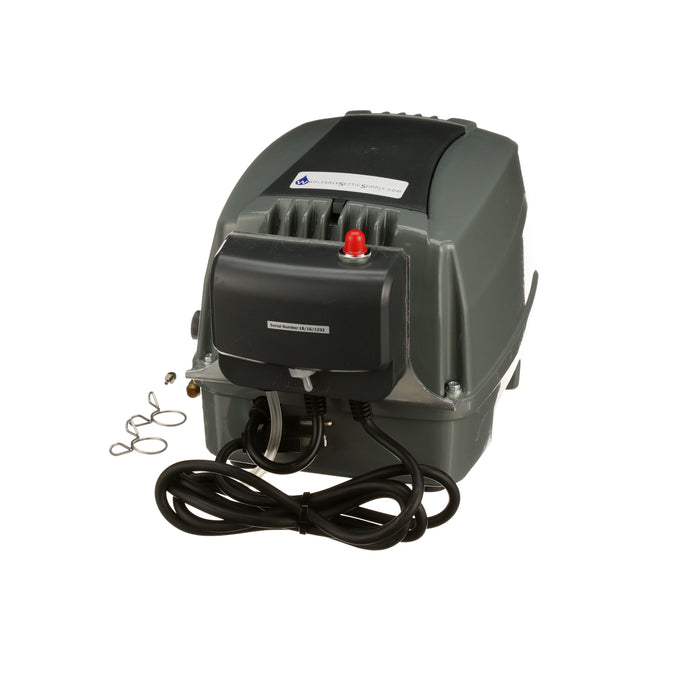

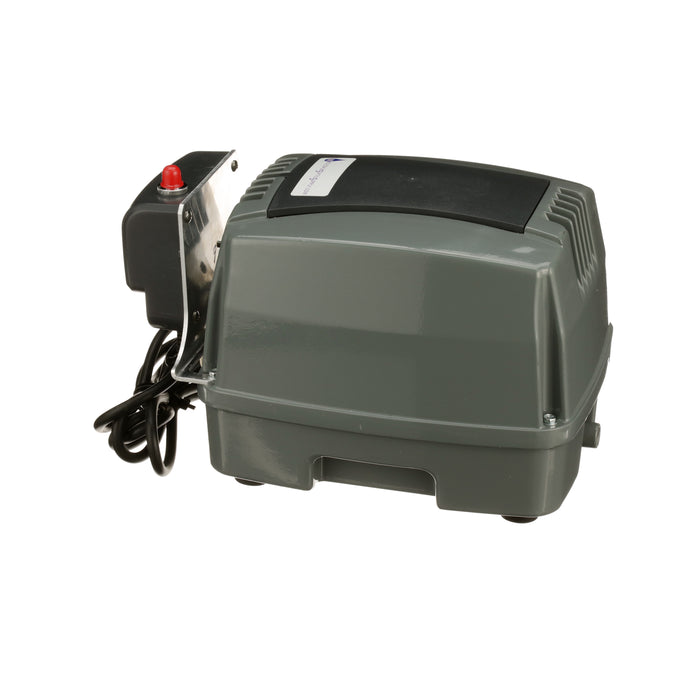

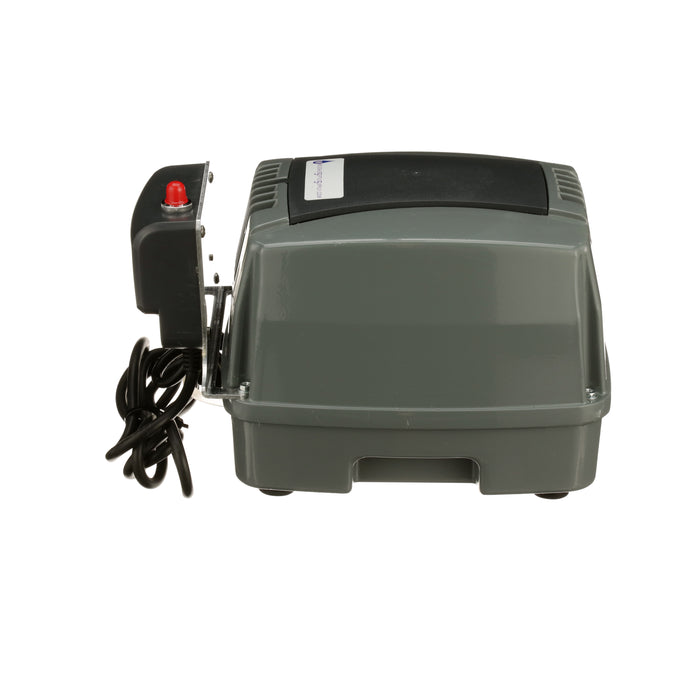

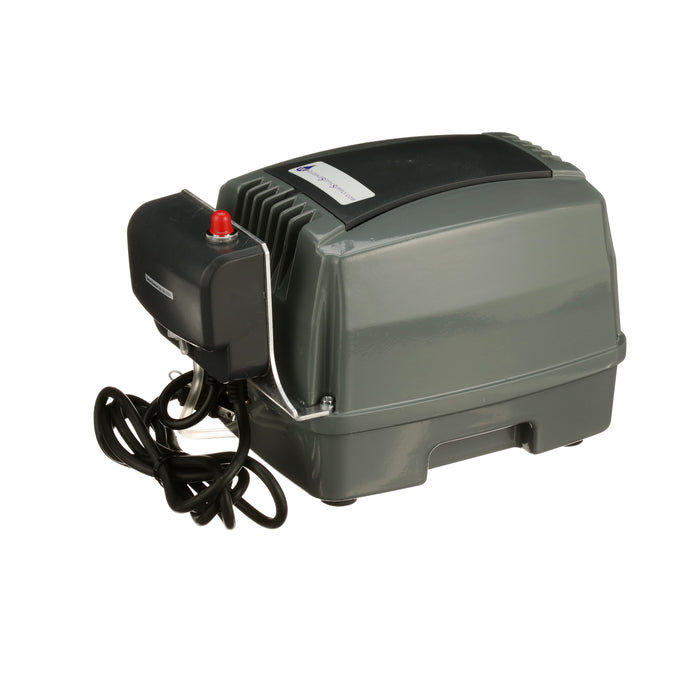

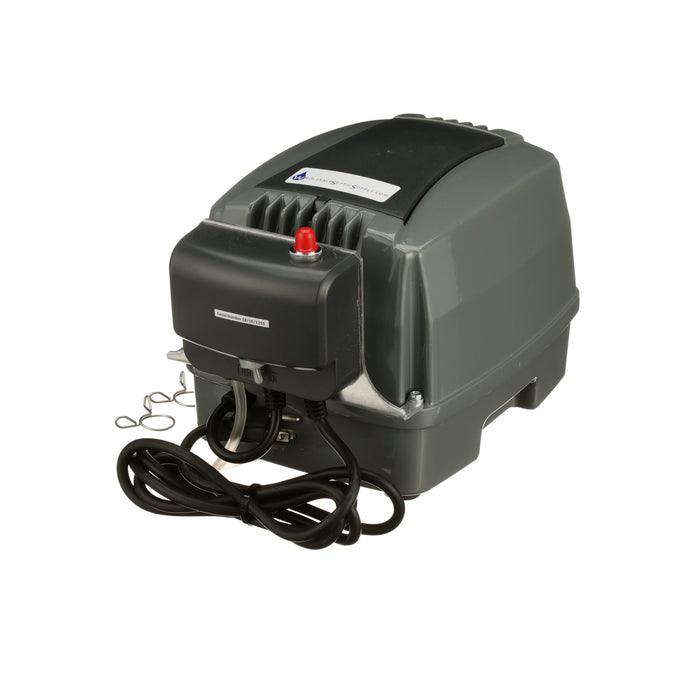

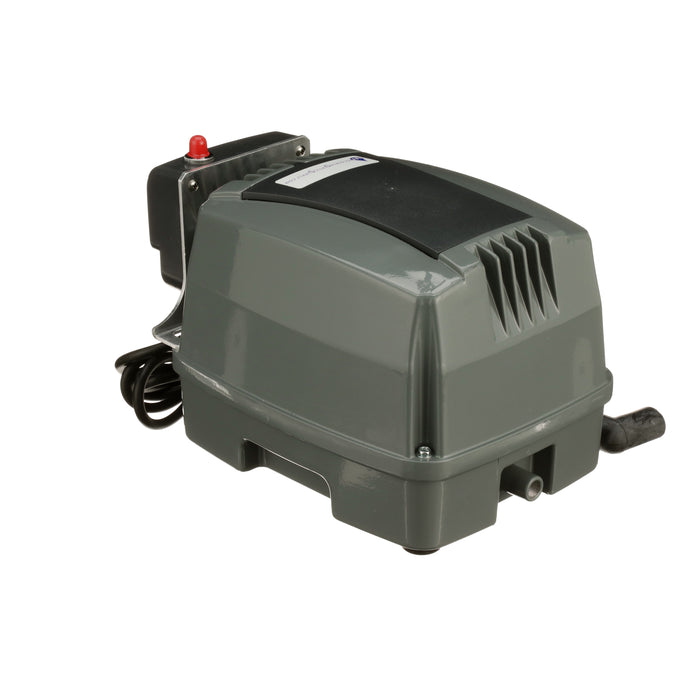

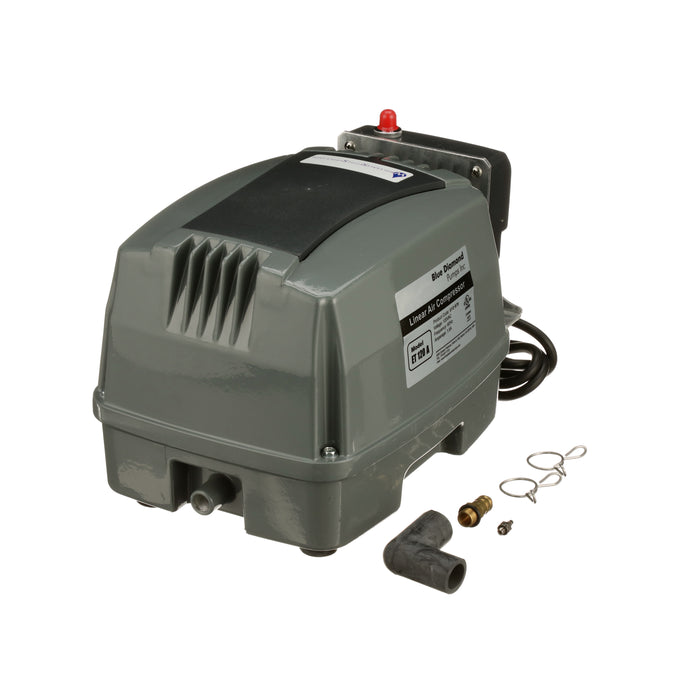

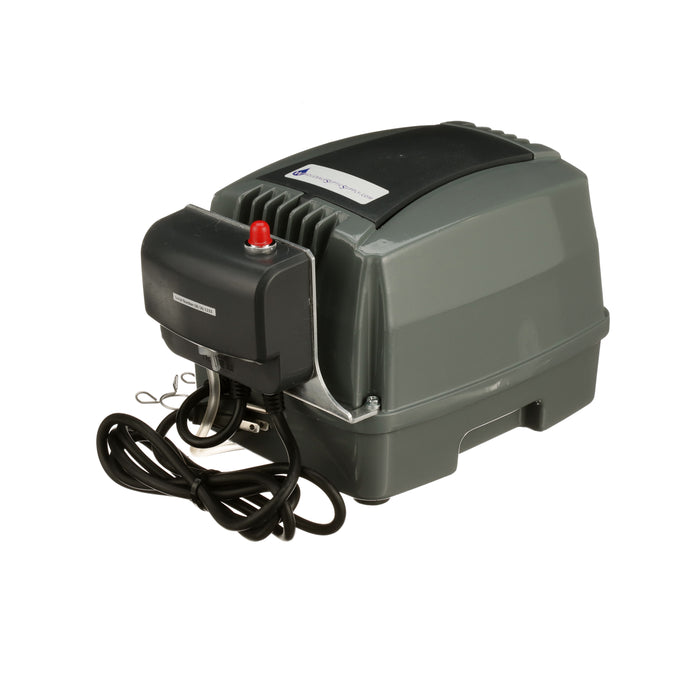

The Blue Diamond ET100 was built to last. It’s robust; weatherproof casing makes this an ideal aerator for outdoor use. Its uniquely crafted diaphragm material boosts its longevity, giving you more time between replacements. When the air pump needs to be repaired, there are cost-effective repair kits available that are easy to use. This pump is also UL, TUV, and CE the attached alarm on the unit will let you know when something is wrong with the aerator. The alarm has a built-in pressure sensor that enables you to know when the air pressure has dropped below the optimal operating range.
Details
- Linear Diaphragm air pump
- These specifications are results for a system with a 120-volt power source
- Most power providers within the United States provide VAC at 60 Hz
- The highest pressure at which this product should operate continuously is 1.45 PSI
- The noise level of this product will be about the average ambient noise within a home
- Oil free operation
- Thermal over load protection
-
| Rated Voltage |
100 |
| Power Supply Frequency |
60 Hz |
| Power Consumption |
80W |
| Max Pressure |
1.45 PSI |
| Sound Level |
45 dBa |
| Outlet Outer Diameter |
0.71 inch |
| LPM |
120 |
ET100 Spec. Sheet
-
WARRANTY: Blue Diamonds come with a 1 year manufacturer warranty. Any and all warranty claims MUST be handled direct with Blue Diamond Pumps. Wholesale Septic Supply does NOT warranty Blue Diamond Aerators.
