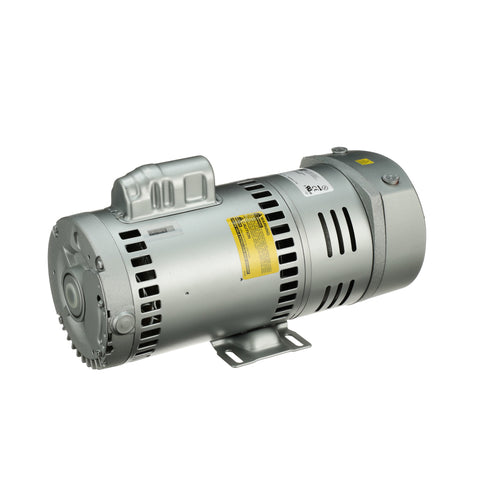

Gast 0823-V2-SG608X Rotary Vane Septic Air Pump

• Key Features

• Specs
• Warranty

• The Gast 0823 Septic Aerator is a popular and reliable linear diaphragm air pump designed for use in septic systems and other wastewater treatment applications.

  It achieves this with a unique vane that puts a film down on the counter face so that the material is wearing against it self.This allows the vane to wear at a rate of a thousandth of an inch per year. It is important to clean the compressors top filter every 4 months as dust entering the the septic air pump takes the film layer away affecting longevity and time between rebuild. Gast Rotary Vane septic air pump is a durable, long lasting pressure air pump.

  This unit can be wired at 230V or 115V, but comes pre-wired for high voltage.

  Details

  • Rotary vane air compressor
  • These specifications are results for a system with a 120-volt power source
  • Most power providers within the United States provide VAC at 60 Hz
  • The highest pressure at which this product can operate continuously is 10 PSI
  • The maximum airflow through the outlet of this product is 226 liters per minute
  • The noise level of this product will be less than double the average ambient noise within a home.
  • Low air pulsation
  • Oil free operation
  • Thermal over load protection
  • Easy maintenance
  • K479 Repair Kit







• Voltage	Dual Voltage 115/230
  Frequency	60 Hz
  Power Usage	560 W
  HP	3/4
  Rotations Per Min	1725
  Max Pressure	10 PSI
  Max Airflow	226 L/min

• One Year Warranty Covering Manufacturing Defects

P/N: GAS-AER-1023-N20
